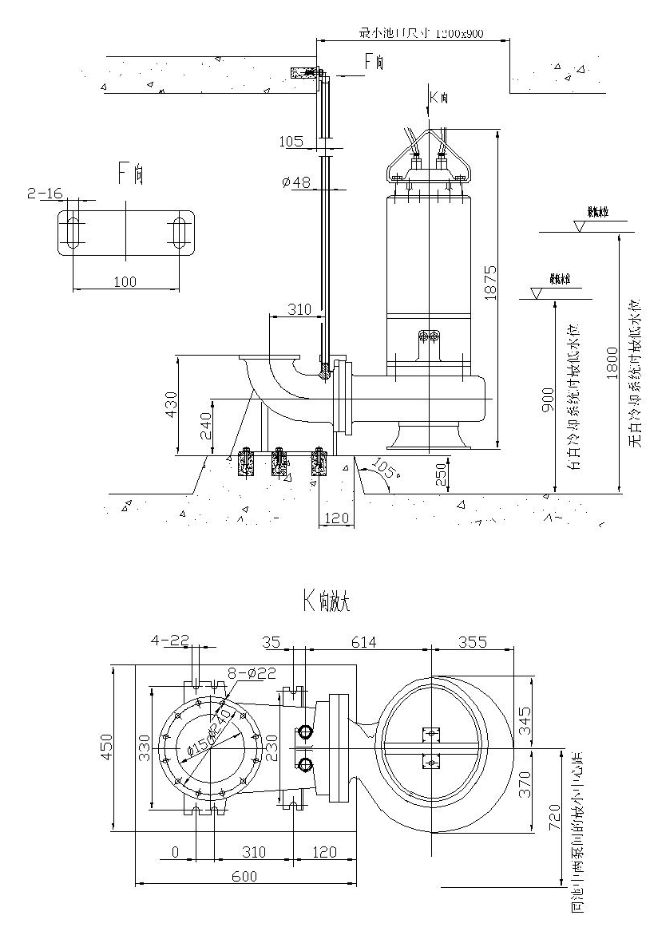

Cutter-type sewage pumps feature a cutter blade installed at the pump’s suction port. This cuts through debris such as long fibers, woven bags, and cotton cloth, preventing blockage of the impeller and flow path. Suitable for domestic sewage, they feature a coupling mechanism for easy lifting and lowering, eliminating the need for personnel to enter the tank for operation and maintenance.

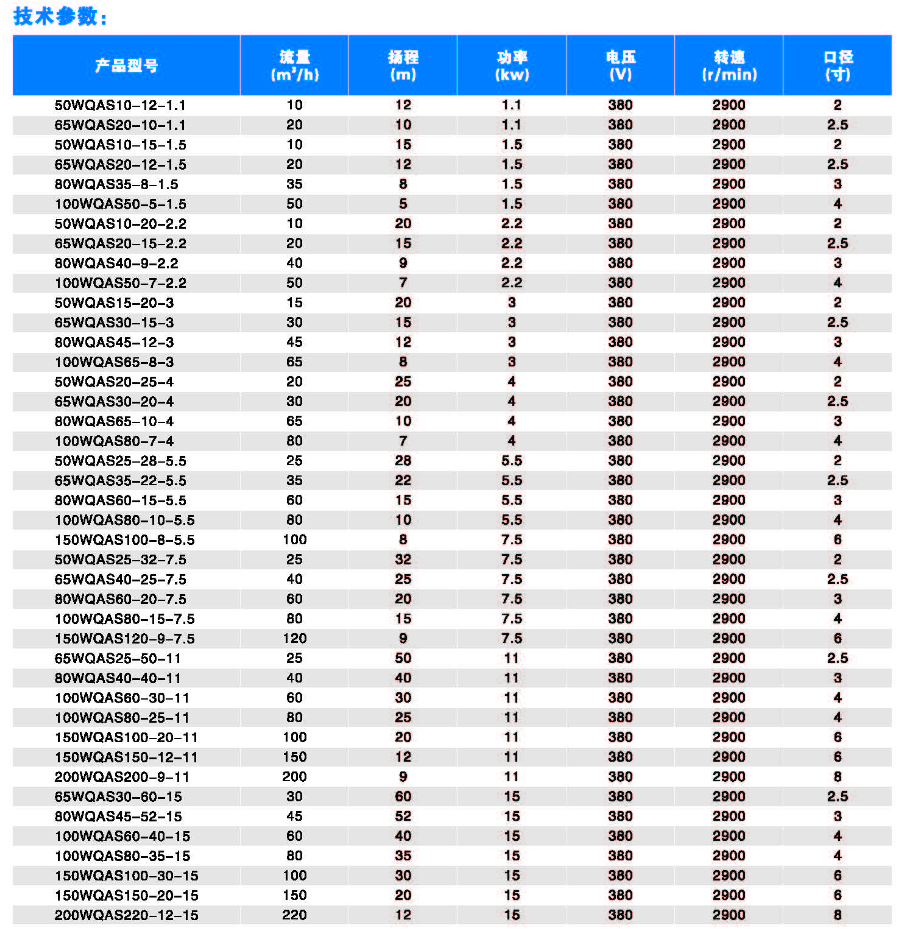

Power: 0.75-800 kW
Head: 1-60 m
Flow rate: 3-20,000 m³/h
Product Overview

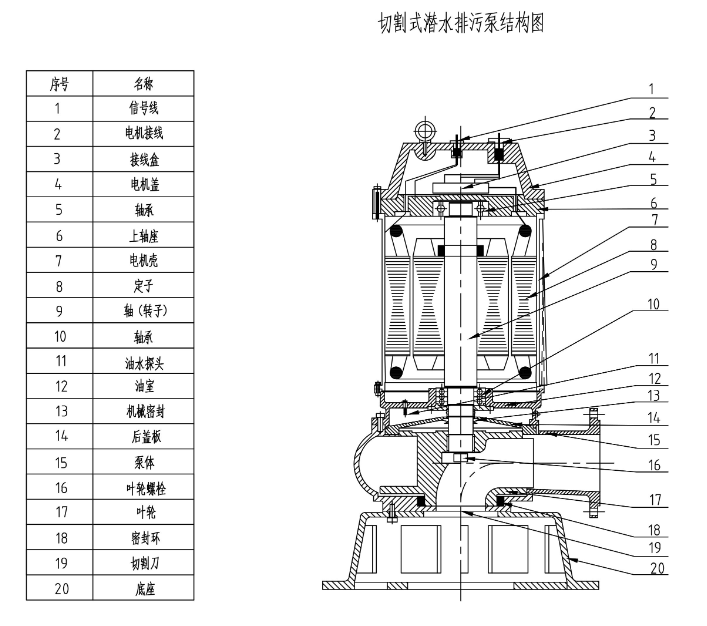

The new WQAS series of submersible electric sewage pumps (hereinafter referred to as pumps) consists of a pump, seal, and motor. The motor is located above the pump and is available in single-phase and three-phase asynchronous versions. Double mechanical seals are used between the pump and motor, and each fixed seal uses an O-ring seal with oil-resistant rubber for static sealing.
Main Applications
This series of pumps is an electric drainage and irrigation system consisting of a motor and pump-type structure. They are suitable for sewage drainage and irrigation in construction sites, coal mines, metallurgy, bridges, textile industries, and other fields. They can also be used for clean water drainage and irrigation. Some models feature a channel-type impeller, significantly improving anti-clogging capabilities. Other models utilize a full-lift design, enabling the pump to operate without overload under normal operating conditions, effectively extending the motor’s service life.
The cutting-type series pumps incorporate advanced international technologies and utilize a novel and unique shearing principle. They can cut or tear long fibers and plastics, maintaining unobstructed flow in the pump.
Operating Conditions
· Medium temperature not exceeding +40°C
· Medium pH between 4 and 10
· Medium density not exceeding 1.2 x 103 kg/m3
· Power supply frequency 50 Hz
· Submersible depth not exceeding 5 meters
Optional Electric Cabinet
Autocoupler step-down starter, soft starter control cabinet, variable frequency control cabinet, ultrasonic level meter, and PLC system
Technical Patents
KLS Pump Industry Co., Ltd. is a large-scale pump manufacturer integrating manufacturing, R&D, and project design. With over 40 years of product technology experience, KLS has introduced advanced domestic and international technologies and production equipment, continuously innovating in product R&D, and has developed a variety of new submersible pumps. These include: an automatically adjustable deep-well submersible pump, a mobile submersible mixed-flow pump with floating function, a high-lift submersible electric pump for deep wells, a medium-suction submersible mixed-flow pump, a submersible axial-flow pump with a sealing and anti-blocking mechanism, a water-lifting submersible axial-flow pump, and a heat-resistant and corrosion-resistant submersible pump. All of these pumps have been granted utility model patents.
KLS Pumps has a large-scale test bench, laboratory, water pump production ERP system, comprehensive data analysis server, and TP automated experimental system. Leveraging its robust factory, technology, power supply equipment, and advanced testing equipment, test benches, and laboratory, KLS Pumps pioneered the concept of customized DIY production. Tianya Pumps offers customized design solutions and production of water pumps tailored to specific water, engineering, and complex environments.
